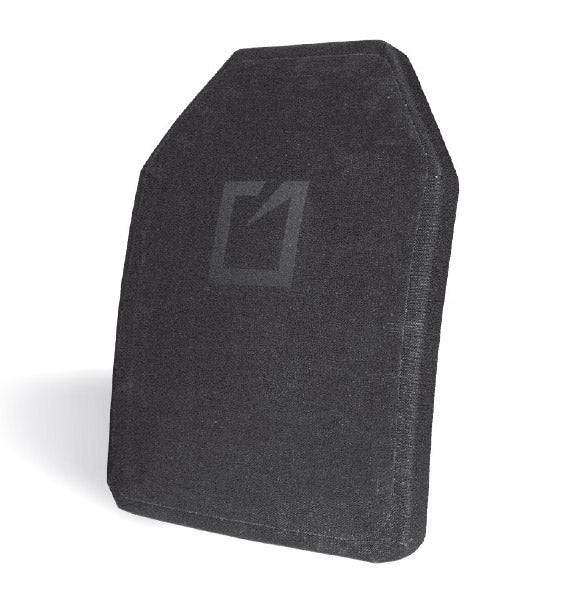

Hesco 800 Series 3810 Level III+ Special Threat Stand Alone Plate SAPI Cut - Multi Curve (SOLD INDIVIDUALLY)

(This product is made to order with an 8 - 12 week lead time)

Hesco 800 Series BI 3810 SAPI Cut Level III+ Stand - Alone Multi Curve Torso Plates

NIJ Certified for Special Rifle Threats

The HESCO 800 SERIES is built for fast - paced, high - risk environments. It offers top - notch protection and great maneuverability.

Using next - gen materials, these plates are the lightest and highest - quality in their category. They come with a durable wrap and waterproof coating for an excellent feel and performance.

• Next - generation Spectra® materials and tech
• Comfortable multi - curve designs
• Law enforcement shooter cut and military Sapi cut options
• Durable, waterproof, polyurethane - coated Cordura® nylon wrap
• Precise quality control

THICKNESS: 0.98 in (25 mm)

SAPI CUT - MULTI CURVE - TORSO PLATES

PART NUMBER	WIDTH x LENGTH	WEIGHT
3810 - SA - MC - XL	11.00 x 14.00 in (279 x 356 mm)	5.4 lb (2.5 kg)
3810 - SA - MC - L	10.25 x 13.25 in (260 x 337 mm)	4.7 lb (2.1 kg)
3810 - SA - MC - M	9.50 x 12.50 in (241 x 318 mm)	4.1 lb (1.8 kg)
3810 - SA - MC - S	8.75 x 11.75 in (222 x 298 mm)	3.5 lb (1.6 kg)
3810 - SA - MC - XS	7.25 x 11.50 in (184 x 292 mm)	2.8 lb (1.3 kg)

Manufacturing Tolerances:

Thickness dimensions are ± 1/8 in (± 3 mm). Width and length dimensions are +0.00 to - 0.25 in (+0.00 to - 6 mm). All weights are ± 5%.

Hesco Testing Protocol

NIJ Certification for hard armor needs 10” x 12” test plates. They must stop specific rounds according to a valid NIJ shot pattern after a tough conditioning test. Level III needs six M80 rounds per plate. Level IV needs one AP M2 per plate. Other same - construction torso plates can be included in the certification without more NIJ testing.

Hesco sets a higher standard. It shows the minimum number of shots each plate size can stop in similar NIJ tests and lists more threats not covered by NIJ certification. Check the Threat Performance Matrix for details.

Thread Performance Matrix

800 SERIES		3810 - SA - MC - XL	3810 - SA - MC - L	3810 - SA - MC - M	3810 - SA - MC - S	3810 - SA - MC - XS
Lead Core	5.56 x 45 mm – MI93 Max Velocity 3150 ft/s (960 m/s)	6	6	6	3	3
	7.62 x 39 mm - M67 Max Velocity 2390 ft/s (728 m/s)	6	6	6	3	3
	7.62 x 51 mm – M80 * Max Velocity 2800 ft/s (853 m/s)	6	6	6	3	3
	7.62 x 63 mm – JSP Max Velocity 2780 ft/s (847 m/s)	6	6	6	3	3
MILD STEEL CORE	5.56 x 45 mm - M855/SS109 Max Velocity 3150 ft/s (960 m/s)	6	6	6	3	3
	7.62 x 39 mm – M43 Max Velocity 2390 ft/s (728 m/s)	3	3	3	3	3
	7.62 x 54R – LPS Max Velocity 2850 ft/s (869 m/s)	3	3	3	1	1

General Information

Advanced ceramic/Spectra® design. Multiple - shot rated for selected threats. Light AP protection for 5.56 x 45 M855. Water - repellant polyurethane - coated CORDURA® fabric finish. Made in the U.S.A.

NIJ Standard–0101.06

Tested and verified to meet or beat ballistic resistance under NIJ Standard– 0101.06 and special rifle threats are validated.

Quality Standards

Hesco has a quality management system certified to ISO 9001:2008. Approved Certificate Numbers: C2016 - 01513; BA9000: 2012; AQAP 2110

Using these Hesco 800 Series 3810 torso plates is simple. Just place them in your compatible body armor carrier. Make sure they fit well and are secure before use. When it comes to maintenance, keep them dry. Since they have a waterproof coating, a little moisture won't hurt, but don't submerge them for a long time. Also, avoid sharp objects that could damage the Cordura® nylon wrap. Check for any signs of wear or damage regularly. If you notice anything like cracks or dents, it's best to replace the plate. Remember, these plates are made to order, so it'll take 8 - 12 weeks to get yours. And always follow any local laws and regulations regarding body armor use.
