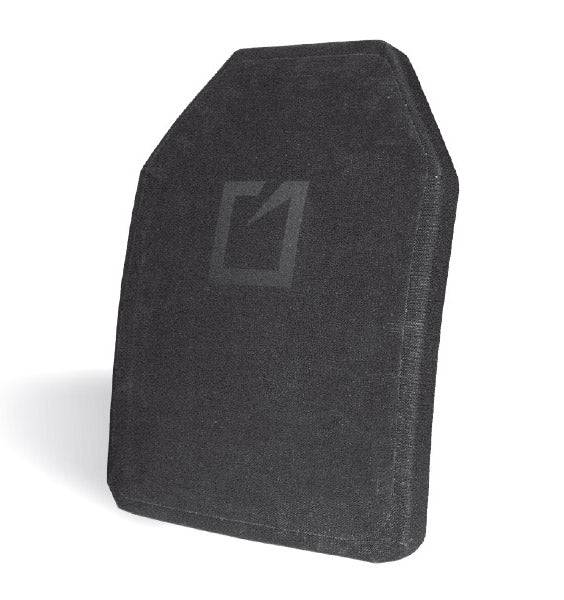

Hesco 800 Series 4800 Level IV Stand Alone Plate SAPI Cut - Multi Curve (SOLD INDIVIDUALLY)

(This product is custom - made with an 8 - 12 week lead time)

Hesco 800 Series BI 4800 SAPI Cut Level IV Stand - Alone Multi - Curve Torso Plates offer top - notch protection.

Hesco SAPI Cut NIJ Level IV Stand - Alone Plates

The HESCO 800 SERIES is engineered for high - risk, fast - paced environments, providing the best in protection and mobility. Using next - gen materials, these plates are the lightest and highest - quality in their class. They come with a durable wrap and waterproof coating for an amazing feel and performance.

• Next - Generation Spectra® Materials and Technology
• Comfort - Fitting Multi - Curve Designs
• Law Enforcement Style Shooter Cut and Military Style Sapi Cut
• Highly Durable, Waterproof, Polyurethane - Coated, Cordura® Nylon Wrap
• Precision Quality Control

THICKNESS: 1.04 in (26 mm)

SAPI CUT - MULTI CURVE - TORSO PLATES

PART NUMBER	WIDTH x LENGTH	WEIGHT
4800 - SA - MC - XL	11.00 x 14.00 in (279 x 356 mm)	6.8 lb (3.1 kg)
4800 - SA - MC - L	10.25 x 13.25 in (260 x 337 mm)	5.9 lb (2.7 kg)
4800 - SA - MC - M	9.50 x 12.50 in (241 x 318 mm)	5.1 lb (2.3 kg)
4800 - SA - MC - S	8.75 x 11.75 in (222 x 298 mm)	4.4 lb (2.0 kg)
4800 - SA - MC - XS	7.25 x 11.50 in (184 x 292 mm)	3.5 lb (1.6 kg)

Manufacturing Tolerances:

Thickness dimensions are ± 1/8 in (± 3 mm). Width and length dimensions are +0.00 to - 0.25 in (+0.00 to - 6 mm). All weights are ± 5%.

Hesco Testing Protocol

NIJ Certification of hard armor needs 10” x 12” test plates to defeat specific rounds in a valid NIJ shot pattern after a strict conditioning test. Level III requires six M80 rounds per plate, and Level IV requires one AP M2 per plate. Other same - construction torso plates can be included in the Certification without extra NIJ testing.

Hesco sets a higher standard by showing the minimum shots each size plate can handle under similar NIJ tests and listing more threats not covered by NIJ certification. Check the Threat Performance Matrix for details.

Threat Performance Matrix

800 SERIES		4800 - SA - MC - XL	4800 - SA - MC - L	4800 - SA - MC - M	4800 - SA - MC - S	4800 - SA - MC - XS
Lead Core	5.56 x 45 mm – MI93 Max Velocity 3150 ft/s (960 m/s)	3	3	3	3	3
	7.62 x 39 mm - M67 Max Velocity 2390 ft/s (728 m/s)	3	3	3	3	3
	7.62 x 51 mm – M80 * Max Velocity 2800 ft/s (853 m/s)	3	3	3	3	3
	7.62 x 63 mm – JSP Max Velocity 2780 ft/s (847 m/s)	3	3	3	3	3
MILD STEEL CORE	5.56 x 45 mm - M855/SS109 Max Velocity 3150 ft/s (960 m/s)	3	3	3	3	3
	7.62 x 39 mm – M43 Max Velocity 2390 ft/s (728 m/s)	3	3	3	3	3
	7.62 x 54R – LPS Max Velocity 2850 ft/s (869 m/s)	3	3	3	1	1
ENHANCED PERFORMANCE	5.56 x 45 mm - M855A1 Max Velocity 3050 ft/s (930 m/s)	3	3	3	3	3
	7.62 x 51mm – M80A1 Max Velocity 3050 ft/s (930 m/s)	1	1	1	1	1
ARMOR PIERCING CORE	7.62 x 39 mm - API Max Velocity 2390 ft/s (728 m/s)	3	3	3	3	3
	7.62 x 54R B - 32 - API Max Velocity 2850 ft/s (869 m/s)	1	1	1	1	1
	7.62 x 51 mm – M61 Max Velocity 2830 ft/s (863 m/s)	1	1	1	1	1
	7.62 x 63 mm – AP M2 ** Max Velocity 2900 ft/s (884 m/s)	1	1	1	1	1

General Information

These plates feature an advanced ceramic/Spectra® design, are multi - shot rated for selected threats, offer light AP protection like against 5.56 x 45 M855. They have a water - repellant polyurethane - coated CORDURA® fabric finish and are made in the USA.

NIJ Standard–0101.06

They're tested and verified to meet or exceed ballistic resistance as per NIJ Standard– 0101.06, including special rifle threats.

Quality Standards

Hesco has a quality management system certified to ISO 9001:2008. Approved Certificate Numbers: C2016 - 01513; BA9000: 2012; AQAP 2110

Using the Hesco 800 Series 4800 Level IV Stand - Alone SAPI Cut Multi - Curve Torso Plates is straightforward. First, choose the right size based on the provided width, length, and weight information. Then, you can attach them to your suitable armor carrier. When it comes to maintenance, keep them in a dry place to protect the waterproof coating. Avoid exposing them to extreme temperatures or sharp objects that could damage the plates. Also, check the plates regularly for any signs of wear and tear. If you notice any damage, it's best to replace the plates as soon as possible. And remember, these plates are made to order, so you'll need to wait 8 - 12 weeks for your custom - made product.
