This product is made to order with an 8 - 12 week lead time.

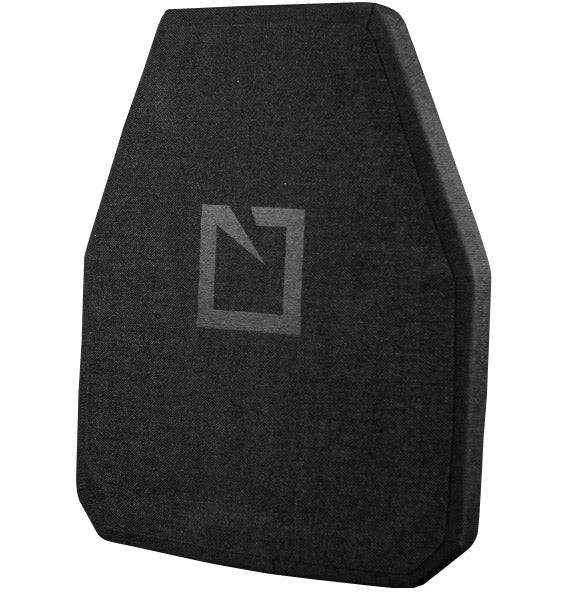

Hesco 800 Series BI 3810 Shooter Cut Level III+ Stand - Alone Multi - Curve Torso Plates
Shooter Cut Level III+ Stand - Alone Plates
The HESCO 800 SERIES is engineered for fast - paced, high - risk environments, offering top - notch protection and excellent maneuverability. These plates use next - generation materials, making them the lightest and highest - quality in their class. They come with a super - durable wrap and waterproof coating, ensuring great feel and performance.
- Next - Gen Spectra® Materials and Advanced Technology
- Comfort - Fitting Multi - Curve Designs
- Law Enforcement - Style Shooter Cut and Military - Style Sapi Cut Available
- Highly Durable, Waterproof, Polyurethane - Coated Cordura® Nylon Wrap
- Precision Quality Control
THICKNESS: 0.98 in (25 mm)
SHOOTER CUT - MULTI CURVE - TORSO PLATES
| PART NUMBER | WIDTH x LENGTH | WEIGHT |
| 3810 - SH - MC - L | 10.0 x 12.0 in (254 x 305 mm) | 3.9 lb (1.8 kg) |
| 3810 - SH - MC - S | 8.0 x 10.0 in (203 x 254 mm) | 2.5 lb (1.2 kg) |
Manufacturing Tolerances:
Thickness dimensions are ± 1/8 in (± 3 mm). Width and length dimensions are +0.00 to - 0.25 in (+0.00 to - 6 mm). All weights are ± 5%.
Hesco Testing Protocol
NIJ Certification of hard armor needs 10” x 12” test plates. They must defeat specific rounds in a valid NIJ shot pattern after a strict conditioning test to simulate aging and wear. Level III requires six M80 rounds per plate, and Level IV requires one AP M2 per plate. NIJ allows other size torso plates of the same construction to be included in the Certification without more testing.
Hesco sets a higher standard. They publish the minimum number of shots each size plate can defeat under NIJ - like testing and list extra threats not covered by NIJ Certification. Check the Threat Performance Matrix for details.
Thread Performance Matrix
| 800 SERIES | | 3810 - SH - MC - L | 3810 - SH - MC - S |
| Lead Core | 5.56 x 45 mm – MI93, Max Velocity 3150 ft/s (960 m/s) | 6 | 3 |
| 7.62 x 39 mm - M67, Max Velocity 2390 ft/s (728 m/s) | 6 | 3 |
| 7.62 x 51 mm – M80 *, Max Velocity 2800 ft/s (853 m/s) | 6 | 3 |
| 7.62 x 63 mm – JSP, Max Velocity 2780 ft/s (847 m/s) | 6 | 3 |
| MILD STEEL CORE | 5.56 x 45 mm - M855/SS109, Max Velocity 3150 ft/s (960 m/s) | 6 | 3 |
| 7.62 x 39 mm – M43, Max Velocity 2390 ft/s (728 m/s) | 3 | 3 |
| 7.62 x 54R – LPS, Max Velocity 2850 ft/s (869 m/s) | 3 | 1 |
General Information
It has an advanced ceramic/Spectra® design, is multi - shot rated for selected threats, offers light AP protection (including 5.56 x 45 M855), and has a water - repellant polyurethane - coated CORDURA® fabric finish. It's made in the U.S.A.
NIJ Standard–0101.06
It's tested and verified to meet or exceed ballistic resistance as per NIJ Standard– 0101.06, with Special Rifle Threats validated.
Quality Standards
Hesco has a quality management system certified to ISO 9001:2008. Approved Certificate Numbers: C2016 - 01513; BA9000: 2012; AQAP 2110
Using the Hesco 800 Series 3810 Level III+ plates is straightforward. First, choose the right size for you from the available options: 3810 - SH - MC - L or 3810 - SH - MC - S. Make sure to wear them in a proper armor carrier that fits well. This will ensure maximum protection and comfort during use. When it comes to maintenance, keep the plates dry as they have a waterproof coating, but it's still a good idea to avoid long - term exposure to water. Don't expose the plates to extreme temperatures or sharp objects that could damage the coating or the material inside. If the plates get dirty, you can gently wipe them with a soft, damp cloth. Also, remember that these plates are made to order, so you'll need to wait 8 - 12 weeks for delivery. Check the Threat Performance Matrix regularly to know the minimum number of shots your plate size can handle against different threats. If you have any doubts or notice any damage to the plates, it's best to contact Hesco's customer service for advice.
