This product is custom - made with an 8 - 12 week lead time.

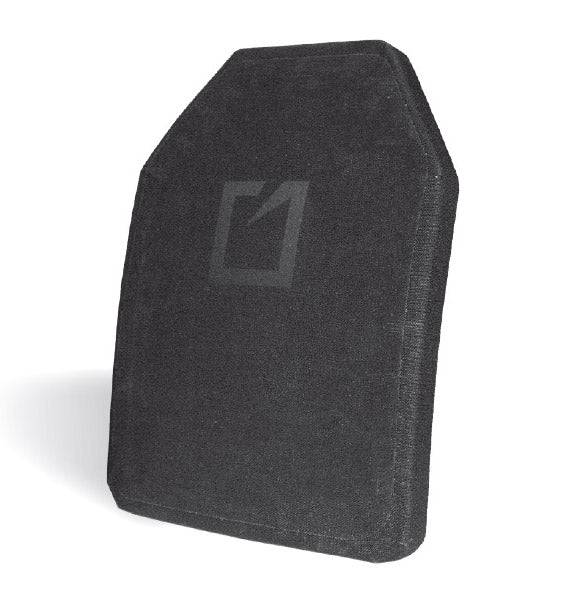

These Hesco 600 Series BI 3600 SAPI Cut Level III stand - alone multi - curve torso plates are a top choice for tactical teams. They're tested and verified to meet or exceed NIJ Standard - 0101.06 ballistic resistance, including special threats.
The HESCO 600 SERIES is designed for comfort and easy movement. These lightweight yet high - performance plates are perfect for speed operations.
Just like all HESCO BALLISTIC INSERTS, these plates are made to the highest quality and tested beyond NIJ requirements, up to the HESCO STANDARD.
- Made with advanced Spectra® materials
- Designed for long - term comfort
- Available in law enforcement style shooter cut and military style Sapi cut
- Highly durable, waterproof, with a polyurethane - coated Cordura® nylon wrap
- Precision quality control
Thickness: 1.20 in (30 mm)
SAPI CUT - MULTI CURVE - TORSO PLATES
| PART NUMBER | WIDTH x LENGTH | WEIGHT |
| 3600 - SA - MC - XL | 11.00 x 14.00 in (279 x 356 mm) | 3.9 lb (1.8 kg) |
| 3600 - SA - MC - L | 10.25 x 13.25 in (260 x 337 mm) | 3.4 lb (1.5 kg) |
| 3600 - SA - MC - M | 9.50 x 12.50 in (241 x 318 mm) | 2.9 lb (1.3 kg) |
| 3600 - SA - MC - S | 8.75 x 11.75 in (222 x 298 mm) | 2.5 lb (1.1 kg) |
| 3600 - SA - MC - XS | 7.25 x 11.50 in (184 x 292 mm) | 2.0 lb (0.9 kg) |
Manufacturing Tolerances:
Thickness dimensions are ± 1/8 in (± 3 mm). Width and length dimensions are +0.00 to - 0.25 in (+0.00 to - 6 mm). All weights are ± 5%.
Hesco Testing Protocol
NIJ Certification of hard armor needs 10” x 12” test plates. They must show they can defeat specific rounds in a valid NIJ shot pattern after a strict conditioning process. Level III needs six M80 rounds per plate, and Level IV needs one AP M2 per plate.
NIJ allows other size torso plates of the same construction to be included in the Certification without more testing.
Hesco has a higher standard. They publish the minimum number of shots each size plate can handle under similar NIJ testing and list extra threats not covered by NIJ Certification. You can find the minimum shots in the Threat Performance Matrix.
Thread Performance Matrix
| 600 SERIES | | 3600 - SA - MC - XL | 3600 - SA - MC - L | 3600 - SA - MC - M | 3600 - SA - MC - S | 3600 - SA - MC - XS |
| Lead Core | 5.56 x 45 mm – MI93 Max Velocity 3150 ft/s (960 m/s) | 6 | 6 | 6 | 3 | 3 |
| 7.62 x 39 mm - M67 Max Velocity 2390 ft/s (728 m/s) | 6 | 6 | 6 | 3 | 3 |
| 7.62 x 51 mm – M80 * Max Velocity 2800 ft/s (853 m/s) | 6 | 6 | 6 | 3 | 3 |
| 7.62 x 63 mm – JSP Max Velocity 2780 ft/s (847 m/s) | 6 | 6 | 6 | 3 | 3 |
| MILD STEEL CORE | 7.62 x 39 mm – M43 Max Velocity 2390 ft/s (728 m/s) | 6 | 6 | 6 | 3 | 3 |
General Information
Lightweight Spectra® design. It's buoyant, multi - shot rated for selected threats, and has a water - repellant polyurethane - coated CORDURA® fabric finish. Made in the U.S.A
NIJ Standard–0101.06
Tested and verified to meet or exceed ballistic resistance as specified under NIJ Standard– 0101.06, including special rifle threats.
Quality Standards
Hesco has a quality management system certified to ISO 9001:2008. Approved Certificate Numbers: C2016 - 01513; BA9000: 2012; AQAP 2110
Using these Hesco ballistic plates is straightforward. First, choose the right size based on the dimensions provided. The plates are designed to fit into compatible vests or carriers. Just place the plate in the designated pocket, making sure it's properly aligned. When wearing, adjust the vest for a comfortable and secure fit so the plate stays in place. As for maintenance, keep the plates dry. The waterproof coating helps, but avoid long - term exposure to water. If they get dirty, gently wipe them with a damp cloth. Check the plates regularly for any signs of damage like cracks or tears. If you notice any issues, stop using the plate immediately. Also, remember these plates are made to order, so it'll take 8 - 12 weeks for you to receive them. And they're tested to high standards, but always follow safety guidelines when using them in tactical situations.
