(This product is custom - made with an 8 - 12 week lead time)

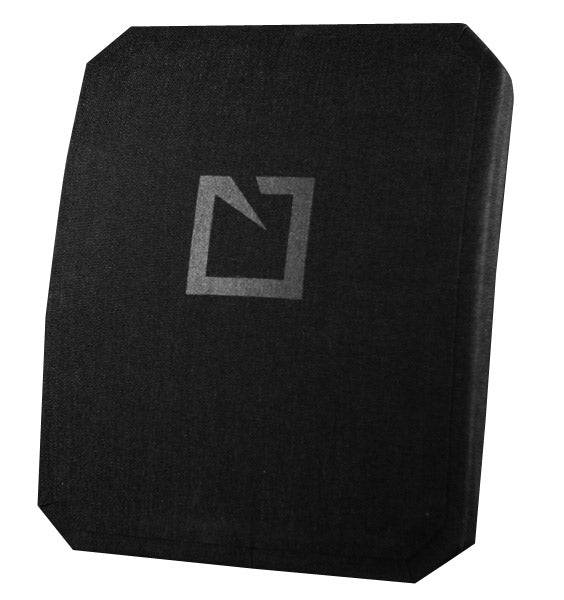

Hesco 600 Series BI 3600 Full - Cut Level III Stand - Alone Multi - Curve Ballistic Plates
NIJ Standard - 0101.06: Tested and proven to surpass ballistic resistance requirements and validate special threats.
The HESCO 600 SERIES offers both comfort and mobility. These lightweight, high - performance plates are perfect for tactical teams and fast - paced operations.
Just like all HESCO BALLISTIC INSERTS, these plates are made to the highest quality, tested beyond NIJ standards, meeting the HESCO STANDARD.
- Advanced Spectra® materials
- Designed for long - term comfort
- Available in law - enforcement shooter cut and military Sapi cut
- Highly durable, waterproof, with a polyurethane - coated Cordura® nylon wrap
- Precise quality control
THICKNESS: 1.20 in (30 mm)
FULL CUT - MULTI CURVE - TORSO PLATES
| PART NUMBER | WIDTH x LENGTH | WEIGHT |
| 3600 - FC - MC - L | 10.0 x 12.0 in (254 x 305 mm) | 3.2 lb (1.4 kg) |
| 3600 - FC - MC - S | 8.0 x 10.0 in (203 x 254 mm) | 2.0 lb (0.9 kg) |
Manufacturing Tolerances:
Thickness dimensions are ± 1/8 in (± 3 mm). Width and length dimensions are +0.00 to - 0.25 in (+0.00 to - 6 mm). All weights are ± 5%.
Hesco Testing Protocol
NIJ hard - armor certification needs 10” x 12” test plates to defeat specific rounds following a strict conditioning process. Level III requires six M80 rounds per plate, and Level IV requires one AP M2 per plate. Other same - construction torso plates are covered by the certification without extra NIJ testing.
Hesco sets a higher bar by sharing the minimum shots each plate size can handle and listing more threats not in the NIJ process. Check the Threat Performance Matrix for details.
Thread Performance Matrix
| 600 SERIES | | 3600 - FC - MC - L | 3600 - FC - MC - S |
| Lead Core | 5.56 x 45 mm – MI93, Max Velocity 3150 ft/s (960 m/s) | 6 | 3 |
| 7.62 x 39 mm - M67, Max Velocity 2390 ft/s (728 m/s) | 6 | 3 |
| 7.62 x 51 mm – M80 *, Max Velocity 2800 ft/s (853 m/s) | 6 | 3 |
| 7.62 x 63 mm – JSP, Max Velocity 2780 ft/s (847 m/s) | 3 | 3 |
| MILD STEEL CORE | 7.62 x 39 mm – M43, Max Velocity 2390 ft/s (728 m/s) | 6 | 3 |
General Information
Lightweight Spectra® design, buoyant, multi - shot rated for selected threats, water - repellant finish with CORDURA® fabric, and made in the U.S.A
NIJ Standard–0101.06
Tested to meet or exceed NIJ Standard–0101.06 ballistic resistance and validate special rifle threats.
Quality Standards
Hesco's quality management system is ISO 9001:2008 certified. Approved Certificate Numbers: C2016 - 01513; BA9000: 2012; AQAP 2110
Using these Hesco ballistic plates is straightforward. Just insert them into your compatible body armor carrier. Make sure they fit snugly to ensure maximum protection. When you're done using them, take them out of the carrier and store them in a cool, dry place. Avoid exposing them to extreme heat, cold, or moisture. As for maintenance, simply wipe them down with a dry cloth regularly. Check them for any signs of damage like cracks or chips. If you notice any issues, don't use the plates and contact Hesco for further advice. Keep in mind that these plates are made to order, so it'll take 8 - 12 weeks to get them. And always follow any local laws and regulations regarding the use of ballistic plates.
