(This product is custom - made with an 8 - 12 week lead time)

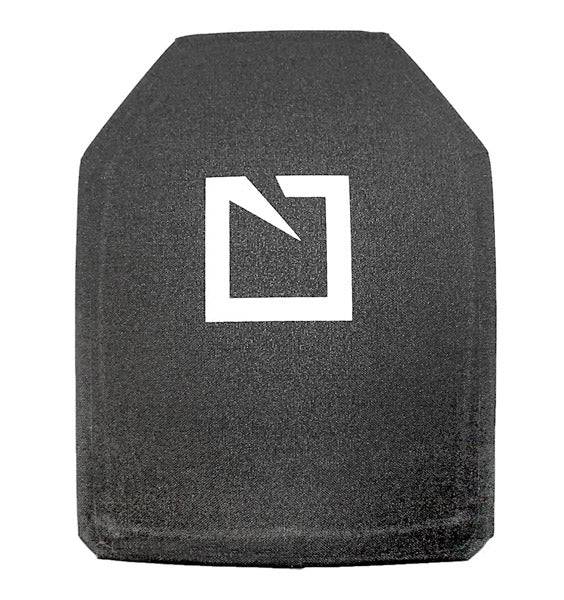

Hesco 200 Series SAPI Cut BI P210 Level IIIA+ Multi - Curve Stand - Alone Plates
NIJ Certified Threat Level IIIA+ SAPI Cut Plates
The 200 Series plates are perfect for situations where concealment is key. They offer both low visibility and special threat protection. Available in single and multi - curve designs, with shooter, full, and SAPI cuts depending on the model.
These plates are specialized ballistic and stab - resistant inserts, ideal when you need a low visual profile.
Features of SAPI Cut Plates
- Made of advanced composite materials
- Cost - effective and reliable
- Single and multi - curve design options
- Highly durable, waterproof, with a polyurethane - coated Cordura nylon wrap
- Precision quality control
Specifications of SAPI Cut Plates
THICKNESS: 0.27 in (7 mm)
SAPI CUT - MULTICURVE - TORSO PLATES
| PART NUMBER | WIDTH x LENGTH | WEIGHT |
| P210 - SA - MC - XL | 11.00 x 14.00 in (279 x 356 mm) | 1.4 lb (0.6 kg) |
| P210 - SA - MC - L | 10.25 x 13.25 in (260 x 337 mm) | 1.2 lb (0.5 kg) |
| P210 - SA - MC - M | 9.50 x 12.50 in (241 x 318 mm) | 1.0 lb (0.5 kg) |
| P210 - SA - MC - S | 8.75 x 11.75 in (222 x 298 mm) | 0.9 lb (0.4 kg) |
| P210 - SA - MC - XS | 7.25 x 11.50 in (184 x 292 mm) | 0.7 lb (0.3 kg) |
Manufacturing Tolerances:
Actual nominal sizes are 0.2 inches smaller than listed. Thickness dimensions are ± 1/8 in (± 3 mm). Width and length dimensions are ± 0.13 in (±3 mm). All weights are ± 5%.
Hesco Testing Protocol
NIJ Certification for hard armor needs 10” x 12” test plates. These plates must defeat specific rounds according to a valid NIJ shot pattern after a strict conditioning process to simulate aging and wear. Level IIIA requires six .357 sig (9 mm FMJ for NIJ 0108.01) and six .44 mag per plate.
NIJ allows other size torso plates of the same construction to be included in the Certification without more testing.
Hesco sets a higher standard. They publish the minimum number of shots each size plate can defeat under similar NIJ testing and list additional threats not covered by NIJ Certification. Check the Threat Performance Matrix for details.
Threat Performance Matrix
| 200 SERIES | P210 - SA - MC - XL | P210 - SA - MC - L | P210 - SA - MC - M | P210 - SA - MC - S | P210 - SA - MC - XS |
| 9 x 19 mm Parabellum | 6 | 6 | 6 | 3 | 3 |
| .45 ACP | 6 | 6 | 6 | 3 | 3 |
| .40 S&W | 6 | 6 | 6 | 3 | 3 |
| FN 5,7 x 28 mm | 6 | 6 | 6 | 3 | 3 |
| .357 Magnum | 6 | 6 | 6 | 3 | 3 |
| .357 SIG | 6 | 6 | 6 | 3 | 3 |
| .44 Magnum | 6 | 6 | 6 | 3 | 3 |
| 7.62 x 25 mm Tokarev | 6 | 6 | 6 | 3 | 3 |
General Information
Advanced UHMWPE design. It's buoyant, multi - shot rated for selected threats, and has a water - repellant polyurethane - coated CORDURA® fabric finish. Made in the U.S.A.
NIJ Standard–0101.06
Special threat testing follows NIJ Standard–0101.06 (modified).
NIJ Standard–0108.01
Tested and proven to meet or exceed ballistic resistance as per NIJ Standard–0108.01.
Quality Standards
Hesco has a quality management system certified to ISO 9001:2008. Approved Certificate Numbers: C2016 - 01513; BA9000: 2012; AQAP 2110
How to use: These Hesco 200 Series P210 plates are designed to be worn for protection. You can choose the right size based on the provided specifications. Just put them in the appropriate carrier for the best fit and protection. Remember, these plates are stand - alone, so you don't need additional inserts.
Things to note: This product is made to order, so it will take 8 - 12 weeks to arrive. Also, be aware of the manufacturing tolerances for size and weight.
Maintenance advice: Since the plates are waterproof and have a polyurethane - coated Cordura nylon wrap, you can simply wipe them clean with a damp cloth if they get dirty. Store them in a cool, dry place to keep them in good condition.
