(This product is made to order with an 8 - 12 week lead time)

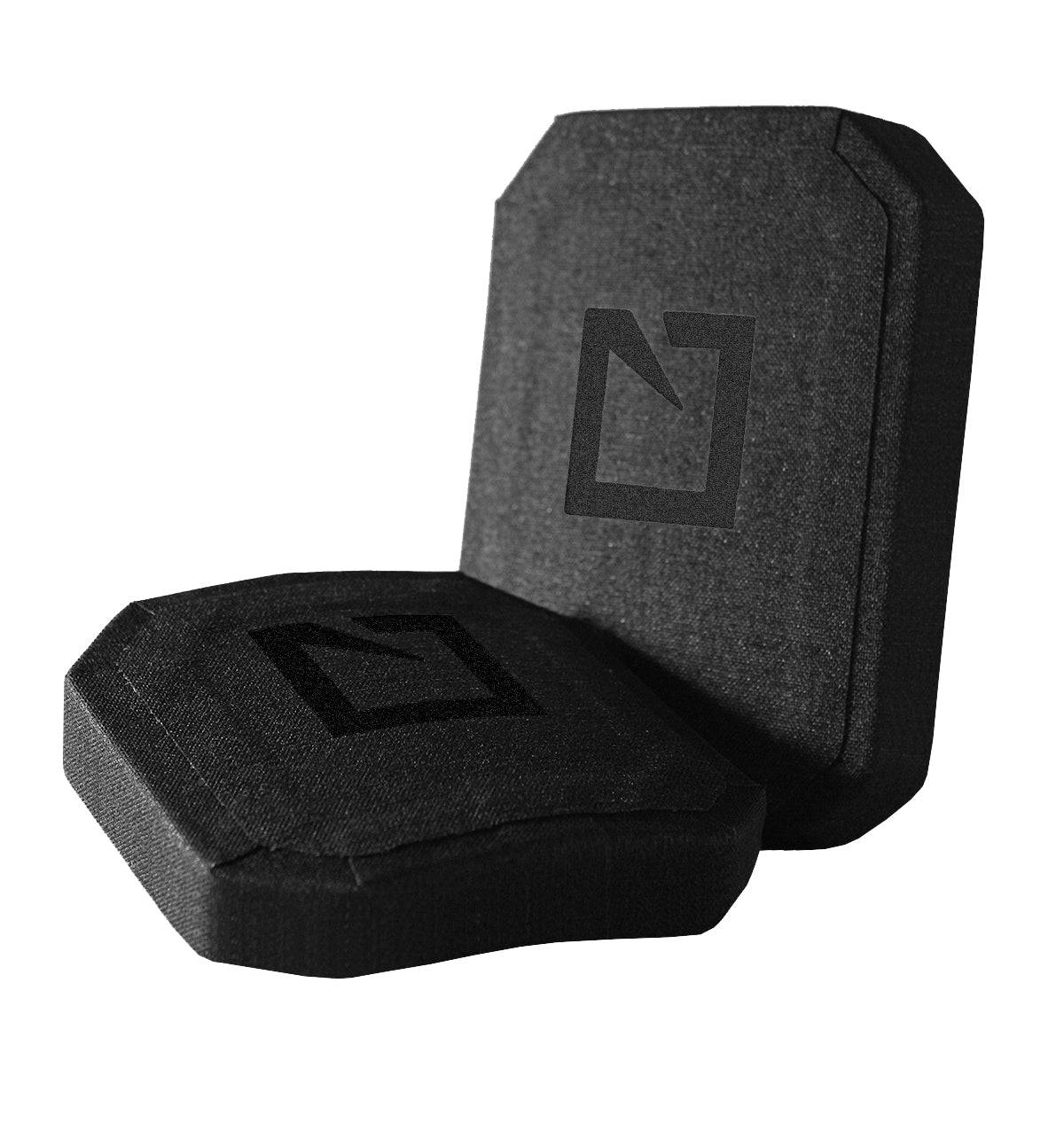

Hesco 100 Series BI 3110 Side Armor Plate
NIJ Certified Level III+ Side Protection Plate
The HESCO 100 SERIES trauma and side plates are expertly crafted to be worn with HESCO torso plates. They safeguard the vulnerable areas under your arms that can get exposed when handling your weapon.
These cost - effective plates don't compromise on quality. They're made of advanced composite materials, feature single - curve trauma and side designs, and come with a highly durable, waterproof, polyurethane - coated, Cordura® nylon wrap. Precision quality control ensures top - notch performance.
THICKNESS: 1.10 in (28 mm)
SINGLE CURVE - SIDE PLATE
| PART NUMBER | WIDTH x LENGTH | WEIGHT |
| 3110 - SP - SC - L | 6.0 x 8.0 in (152 x 203 mm) | 2.5 lb (1.1 kg) |
| 3110 - SP - SC - S | 6.0 x 6.0 in (152 x 152 mm) | 1.8 lb (0.8 kg) |
Hesco Testing Protocol
NIJ Certification for hard armor needs 10” x 12” test plates to defeat specific rounds as per a valid NIJ shot pattern after a strict conditioning test. Level III requires six M80 rounds per plate, and Level IV needs one AP M2 per plate. Other size torso plates of the same construction can be included in the Certification without extra NIJ testing. Hesco goes further by showing the minimum shots each plate size can handle and listing more threats not in the NIJ process, as seen in the Threat Performance Matrix.
Manufacturing Tolerances:
Thickness is ± 1/8 in (± 3 mm). Width and length are +0.00 to - 0.25 in (+0.00 to - 6 mm). All weights are ± 5%.
Threat Performance Matrix
| 100 SERIES | | 3110 - SP - SC - L | 3110 - SP - SC - S |
| LEAD CORE | 5.56 x 45 mm – MI93, Max Velocity 3150 ft/s (960 m/s) | 1 | 1 |
| 7.62 x 39 mm - M67, Max Velocity 2390 ft/s (728 m/s) | 1 | 1 |
| 7.62 x 51 mm – M80, Max Velocity 2800 ft/s (853 m/s) | 1 | 1 |
| MILD STEEL CORE | 5.56 x 45 mm - M855/SS109, Max Velocity 3150 ft/s (960 m/s) | 1 | 1 |
| 7.62 x 39 mm – M43, Max Velocity 2390 ft/s (728 m/s) | 1 | 1 |
| 7.62 x 54R – LPS, Max Velocity 2850 ft/s (869 m/s) | 1 | 1 |
| ARMOR PIERCING CORE | 7.62 x 39 mm - API, Max Velocity 2390 ft/s (728 m/s) | 1 | 1 |
General Information
This plate has a ceramic/composite design, offers light AP protection including against 7.62 x 39 mm API, and has a water - repellant polyurethane - coated CORDURA® fabric finish. It's made in the U.S.A.
NIJ Standard–0101.06
It's tested and verified to meet or exceed ballistic resistance as per NIJ Standard– 0101.06 (modified) and validates special rifle threats.
Quality Standards
Hesco runs a quality management system certified to ISO 9001:2008. Approved Certificate Numbers: C2016 - 01513; BA9000: 2012; AQAP 2110
Using your Hesco 100 Series 3110 Level III+ Side Armor Plate is straightforward. Simply pair it with your HESCO torso plates to protect the areas under your arms. When putting it on, make sure it fits snugly for the best protection. Remember, this product is made to order, so it'll take 8 - 12 weeks to arrive. As for maintenance, keep it dry and clean. The waterproof, polyurethane - coated Cordura® nylon wrap helps with this, but avoid prolonged exposure to water. Check the plate regularly for any signs of damage. If you notice any cracks or wear, it's time to replace it. Also, be aware of the manufacturing tolerances for thickness, width, length, and weight. And know that Hesco has high - quality standards, so you can trust in its performance.
